Standard Size 1200mm*600mm, 600mm*600mm, 2400mm*600mm
Thickness 25mm or 50mm
Density 96kg/m3, 80kg/m3
Series Soft series
Material Glass wool, aluminum frame, fabric
Color Various color selection
Brand Soundwin
Code EN13501-1, ASTM-E84
Model SW-SC001
Finish Sound transparant fabric ,PU leather ,Anti-static fabric ,Customized finish
Fire rating National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
Parameters
Standard Size
1200mm*600mm, 600mm*600mm, 2400mm*600mm
Thickness
25mm or 50mm
Density
96kg/m3, 80kg/m3
Series
Soft series
Material
Glass wool, aluminum frame, fabric
Color
Various color selection
Brand
Soundwin
Code
EN13501-1, ASTM-E84
Model
SW-SC001
Finish
Sound transparant fabric ,PU leather ,Anti-static fabric ,Customized finish
Fire rating
National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
I know
Detail

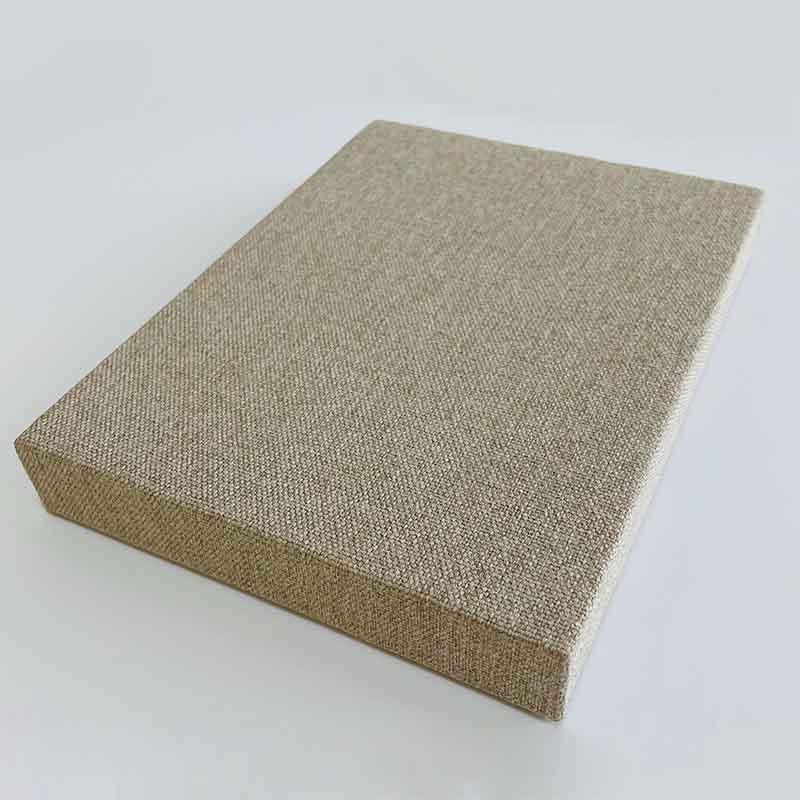

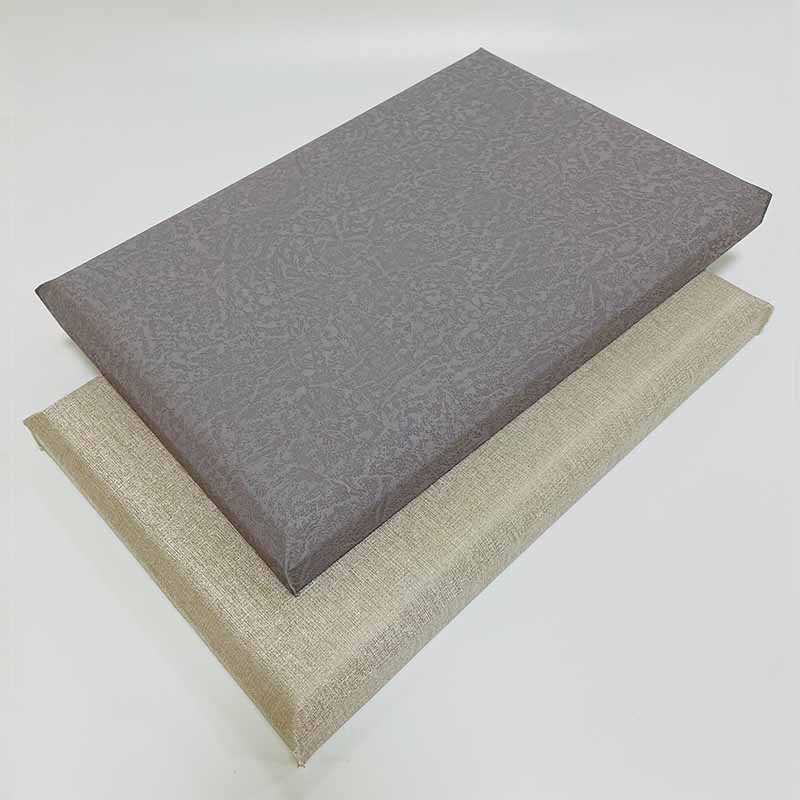

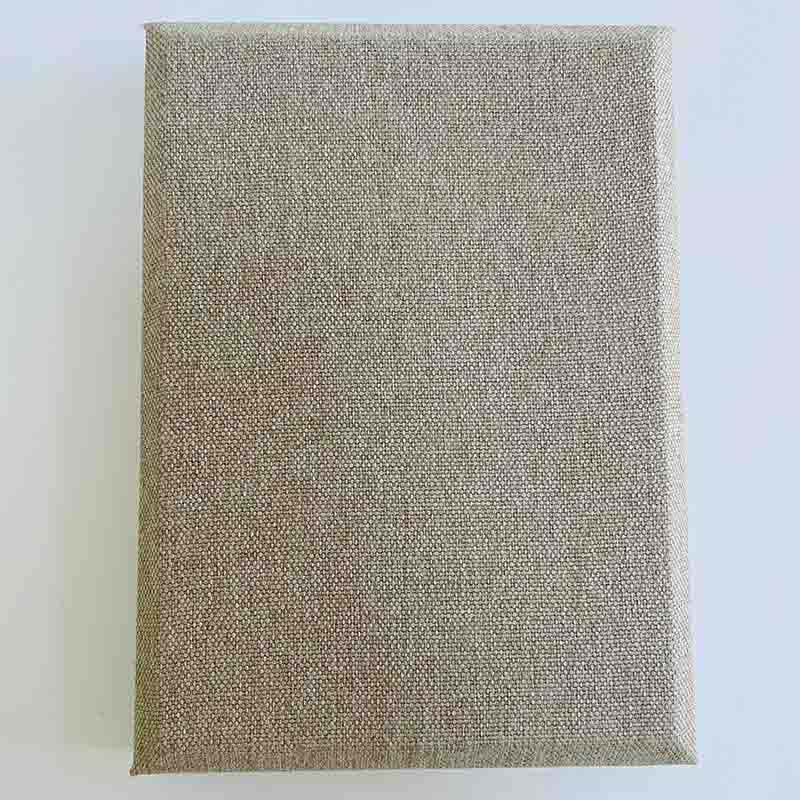

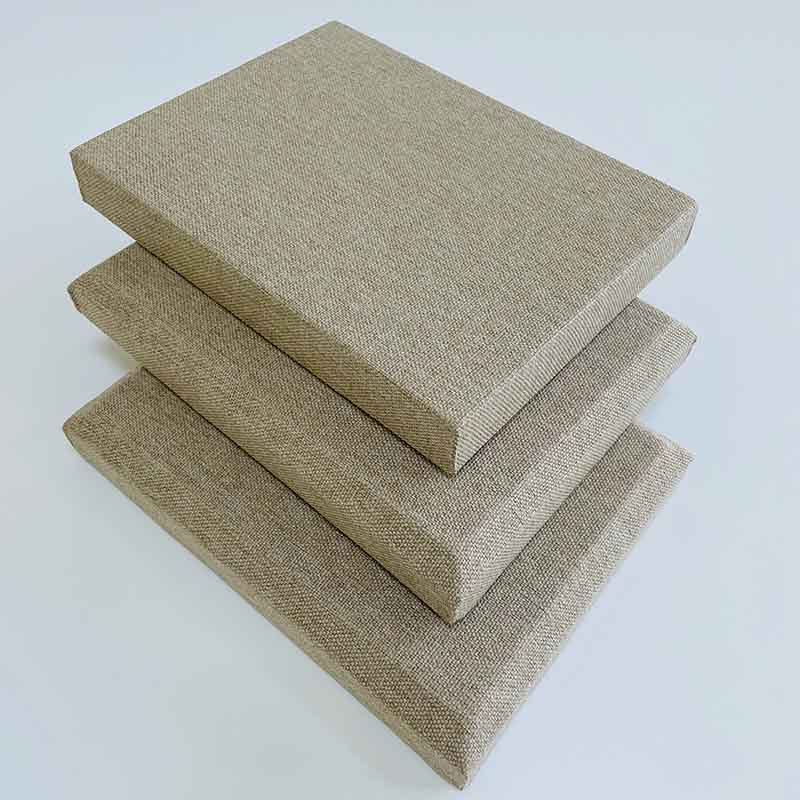

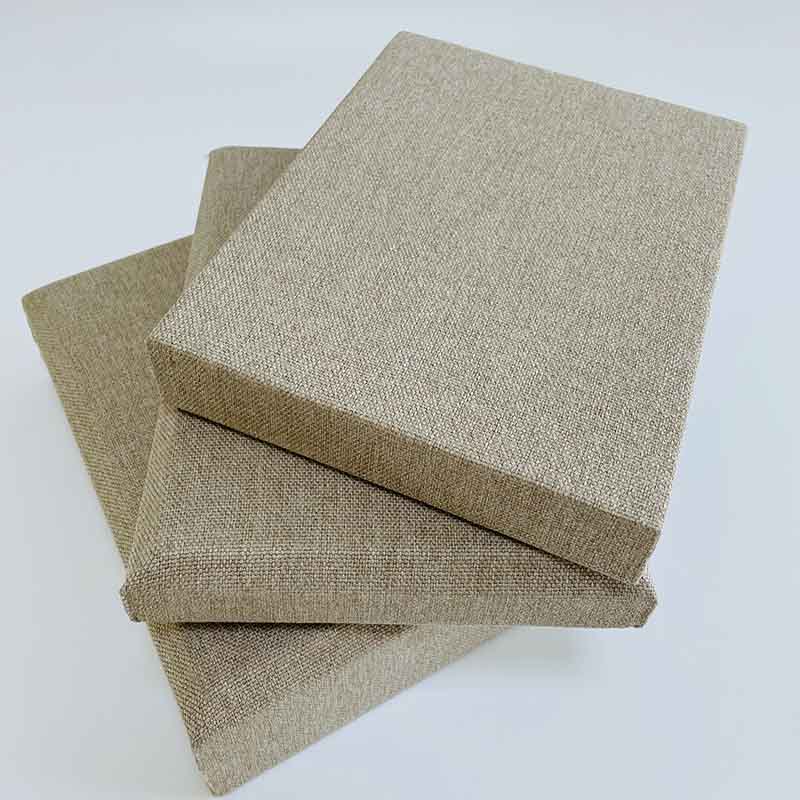

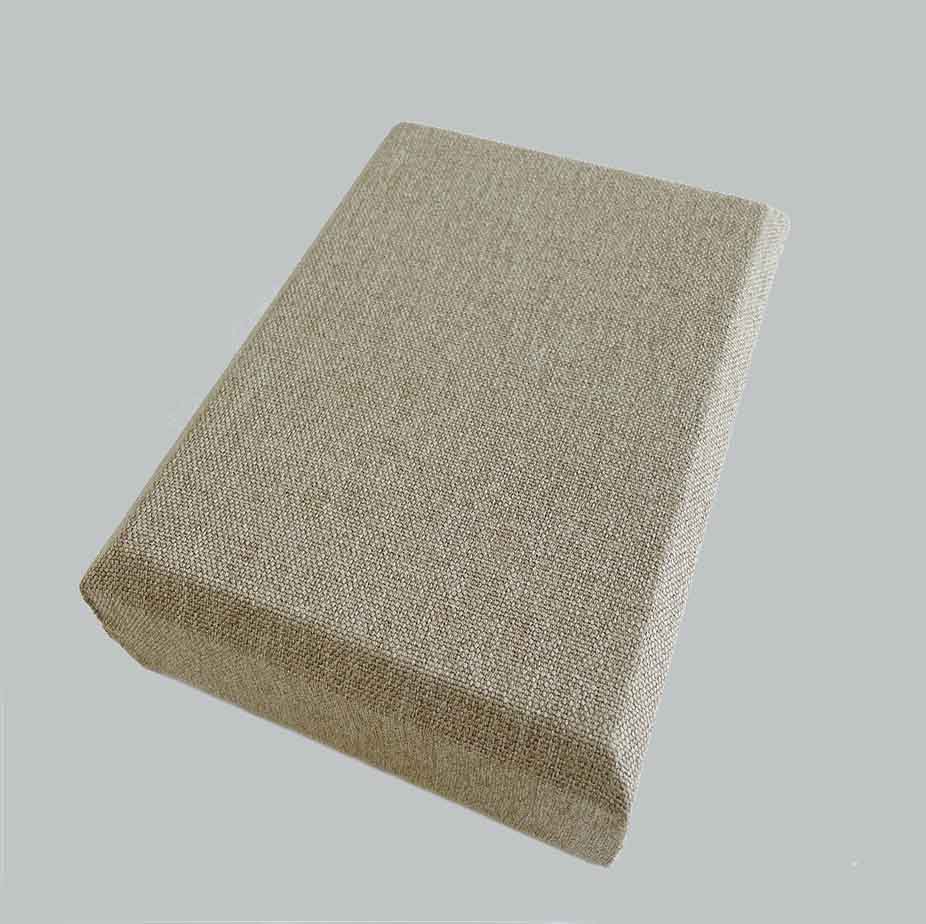

SW SOFT CELL wall and ceiling panel is the ideal solution for spaces with reverberant noise problems.

With qulity acoustic foam as substrate, covered with special fabric to form the panel with high sound absorption performance,it is a kind of full frequency sound absorption materials that have excellent sound absorption performance to low, medium and high frequency.

It is available in a variety of sizes and finishes, and can be customized for specific designs.



Specification:


Standard Size: 1200mm*600mm, 600mm*600mm, 2400mm*600mm

Max Size:3000mm*1200mm or customized
Thickness: 25mm or 50mm


Finish:


*Sound transparant fabric

*PU leather

Anti-static fabric (anti-static, easy cleaning, waterproof, fire retardant)

Customized finish


Color:

Various color selection


Edge details:

*Resin harden edge

*Aluminium frame


Fire rating:

*Class A per ASTM-E84

* National standard: Grade B1

*B-s1 d0 per EN13501-1:2018



Acoustic performane:


Frequency (HZ)
125250500100020004000NRCTesting condition
测试条件

Sound absorption

coefficient (α)

0.420.61 0.90 0.88 0.96 0.93 0.80 25mm soft cell,
200mm Back cavitity,
50mm Acoustic foam

Sound absorption

coefficient (α)

0.610.70 0.96 0.95 0.98 0.95 0.90 50mm soft cell,
200mm Back cavitity,
50mm Acoustic foam


Scene display:
