• 1/5
Standard Size 2420mm*1220mm
Thickness 9mm, 12mm, 18mm, 21mm, 24mm
Density 3.8kg/pc, 5.2kg/pc
Series Soft series
Material Polyester fiber
Color Various color selection
Brand Soundwin
Code EN13501-1, ASTM-E84
Model SW-PE001
Finish Bare
Fire rating National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
Inquiry
Parameters
Standard Size
2420mm*1220mm
Thickness
9mm, 12mm, 18mm, 21mm, 24mm
Density
3.8kg/pc, 5.2kg/pc
Series
Soft series
Material
Polyester fiber
Color
Various color selection
Brand
Soundwin
Code
EN13501-1, ASTM-E84
Model
SW-PE001
Finish
Bare
Fire rating
National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
I know
Detail

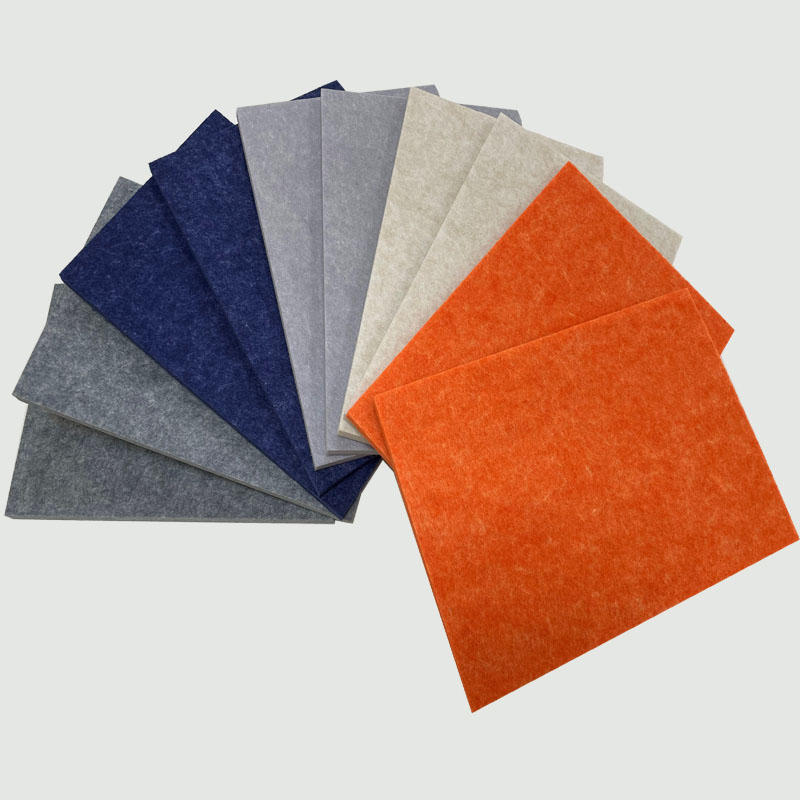

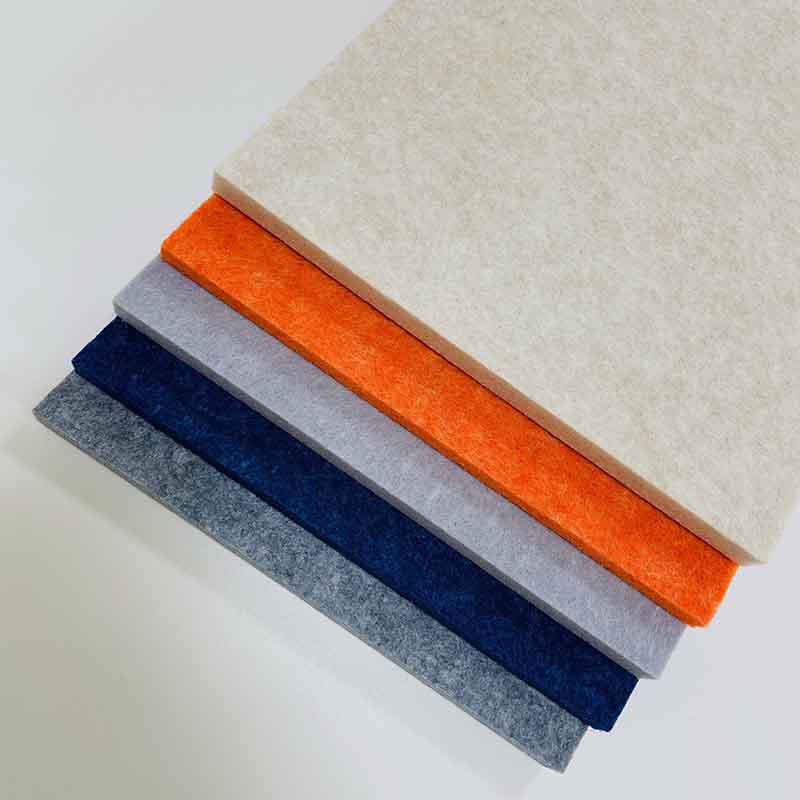

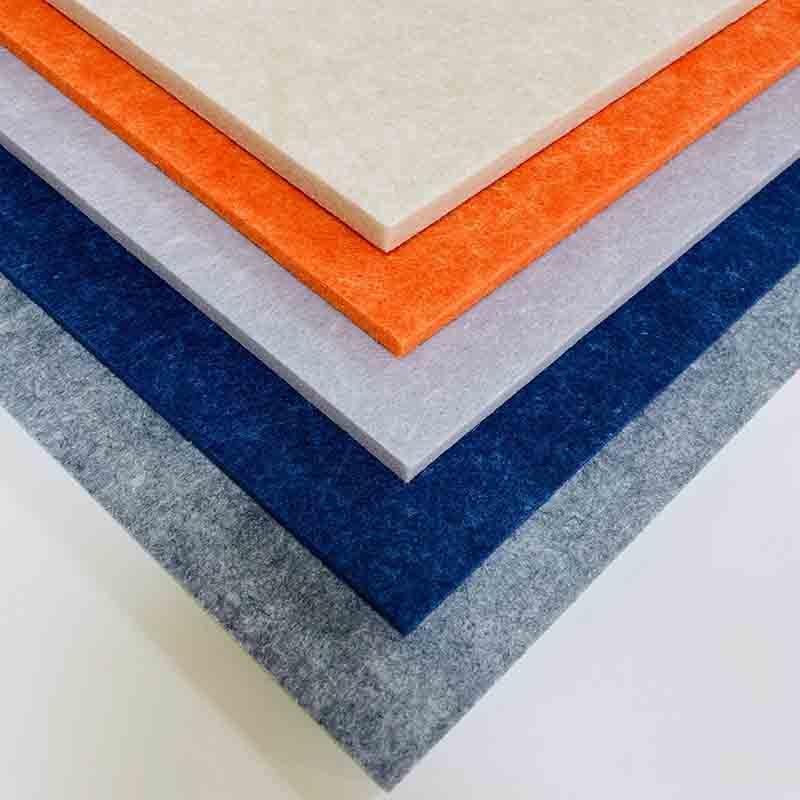

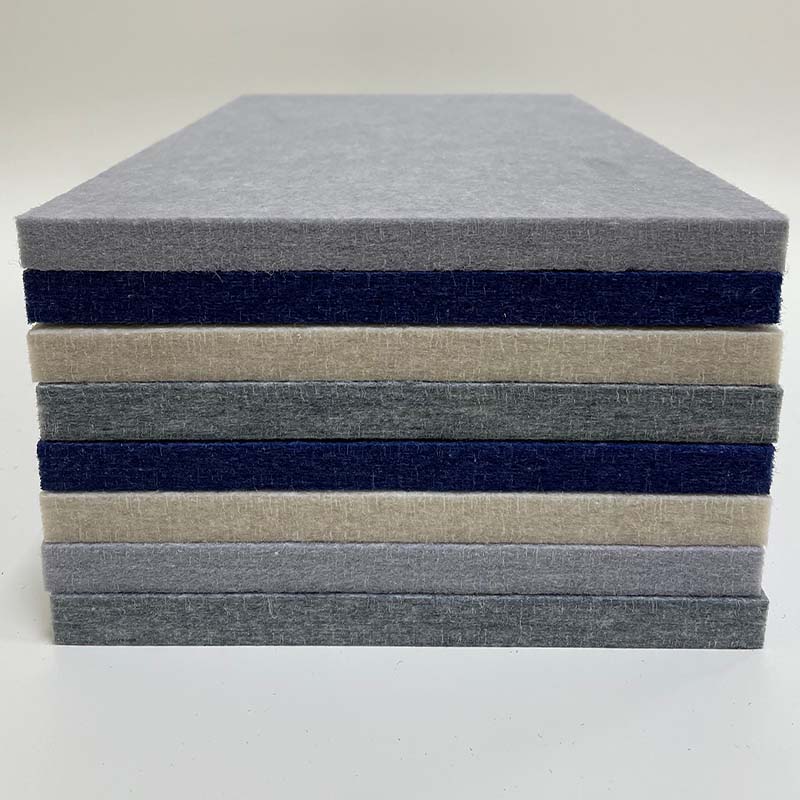

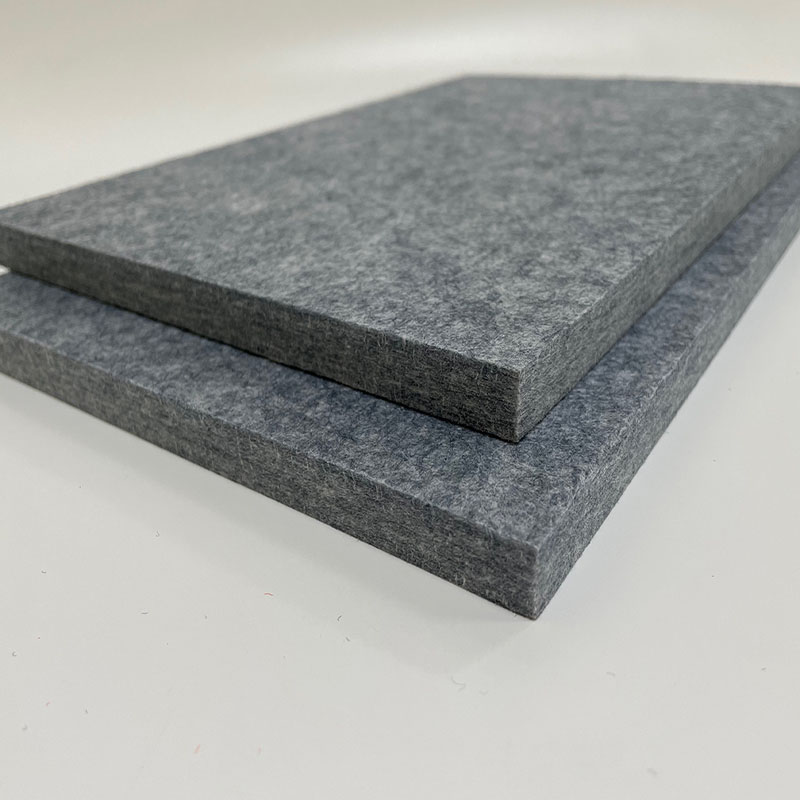

SW POLYESTER FIBER ACOUSTIC PANEL is a light weight and eco friendly   acoustic material, with various of   color and several thickness choices and   DIY shapes available, it is popular used for many different venues such as music classroom, kindergarten, studio, cinema, home theater, meeting room, break room, office, etc.


Specification:

Standard Size: 2420mm*1220mm

Max Size: 3000mm* 1220mm

Thickness: 9mm, 12mm, 18mm, 21mm, 24mm

Customized size and thickness available


Finish:

* Polyester fiber finish

* Fabric

* Painted polyester fiber

* Painted fabric


Color:

*   Various color selection


Fire rating:

* National standard: Grade B1

*Class A per ASTM-E84

*B-s1 d0 per EN13501-1:2018


Acoustic performance:


Frequency (HZ)
125250500100020004000NRCTesting condition
Sound absorption
coefficient (α)
0.13 0.57 0.81 0.92 0.68 0.68 0.75 9mm panel, 100mm cavitity


Scene display:




Polyester Fiber Color Chart


FAQ



Q1: What is the delivery time?

Normally the production time is within 15-20 days, but it also depends on the order qty and orders scheduling situation.



Q2: If OEM & ODM available?

Yes, it is available to provide OEM or ODM service.



Q3: Do you provide free samples?

We provide free samples for normal products with small size, but customized products need sample charge.



Q4: What is your payment term?

30% deposit, balance paid before goods loading for normal products.

50% deposit, balance paid before goods loading for customized products.



Q5: What is the MOQ

100 M2 for acoustic materials, no limit for movable partition and office pod.



Q6: Will you supply installation keels and accessaries for installation?

Yes, we can supply installation keels and accessaries for installation together with the materials you ordered.



Q7: Do you provide installation guide?

Yes, we have skilled engineers with more than 20 years of construction experience, who can provide you installation guide.



Q8: Can you do the installation work in abroad?

Yes, we have professional teams that can do the installation work abroad. But normally only send one engineer to do the installation guide at site is more economic for the clients.
