Standard Size 2400mm*400mm, 2400mm*600mm
Thickness 21mm, 24mm
Series Wooden series
Material MDF , PET panel
Color Wooden colors
Brand Soundwin
Code EN13501-1, ASTM-E84
Model SW-SL001
Finish *Veneer /High pressure laminate /Melamine
Fire rating National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
Inquiry
Parameters
Standard Size
2400mm*400mm, 2400mm*600mm
Thickness
21mm, 24mm
Series
Wooden series
Material
MDF , PET panel
Color
Wooden colors
Brand
Soundwin
Code
EN13501-1, ASTM-E84
Model
SW-SL001
Finish
*Veneer /High pressure laminate /Melamine
Fire rating
National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
I know
Detail

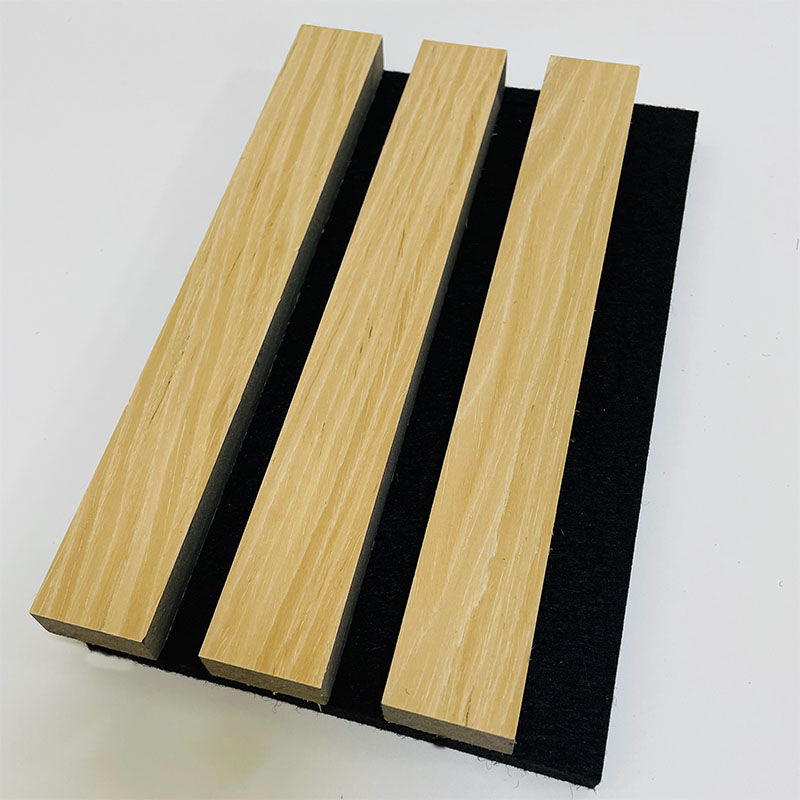

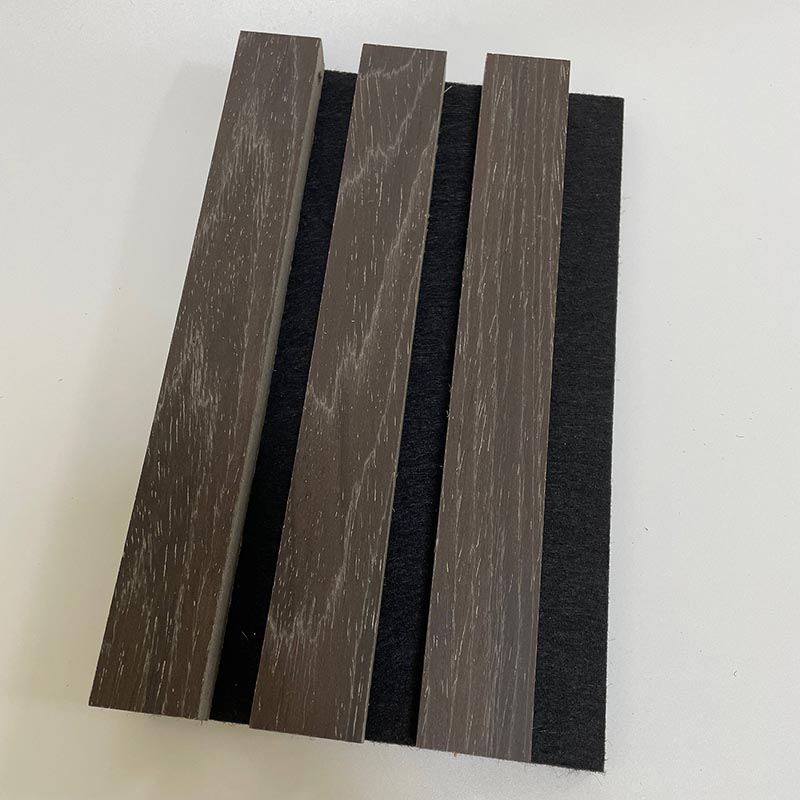

SW SLAT ACOUSTIC PANEL is a new developed acoustic panel, which is made of eco friendly wooden slats and PET panel, it crates a linear decoration with interval array of wooden slats.

It can be used directly on the wall or the ceiling with excellent sound absorption performance, no need thick structure that needs filling acoustic foam and reserving cavitity at the back as traditional way.   It is light and easy to be installed, eco friendly, fire retardant, and with diversified natural wooden finishes or any other pure color finish. It is favored by European and American customers.

It is popular applied at living room, bedroom, hotel rooms, lobby, bars, resturant, auditorium, meeting room,etc.

条形吸音板拼图 有水印4副本.jpg

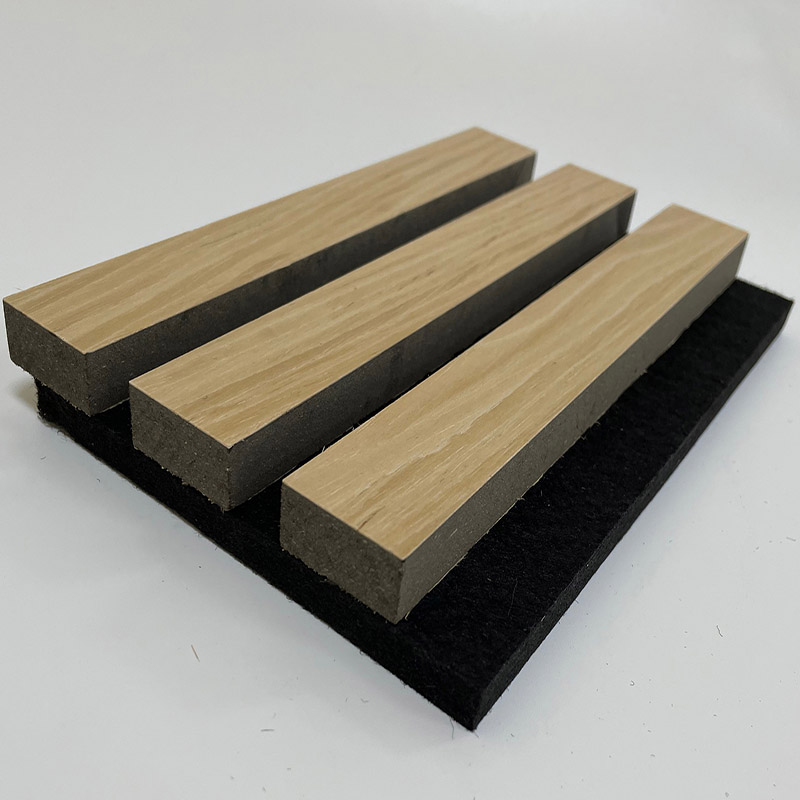

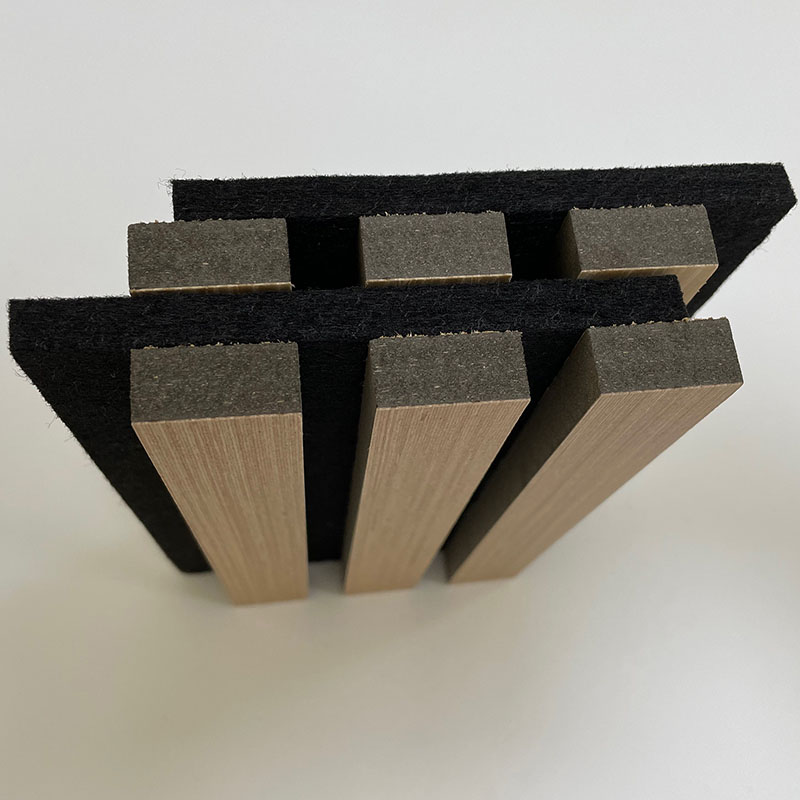

Product Structure:




Specification:

Standard size: 2400mm*400mm, 2400mm*600mm

Thickness: 21mm, 24mm

Customized size and designs available


Two popular design:

 design2 副本 水印.jpg design1 副本-水印.jpg

Finish:


* Veneer

* High pressure laminate

* Melamine


Main material:

* MDF

* PET panel


Acoustic performane:

Frequency (HZ)
125250500100020004000NRCTesting condition

Sound absorption

coefficient (α)

0.160.350.820.930.720.790.71directly fixed to the wall


Fire rating:

* National standard: Grade B1

* Class A per ASTM-E84

* B-s1 d0 per EN13501-1:2018

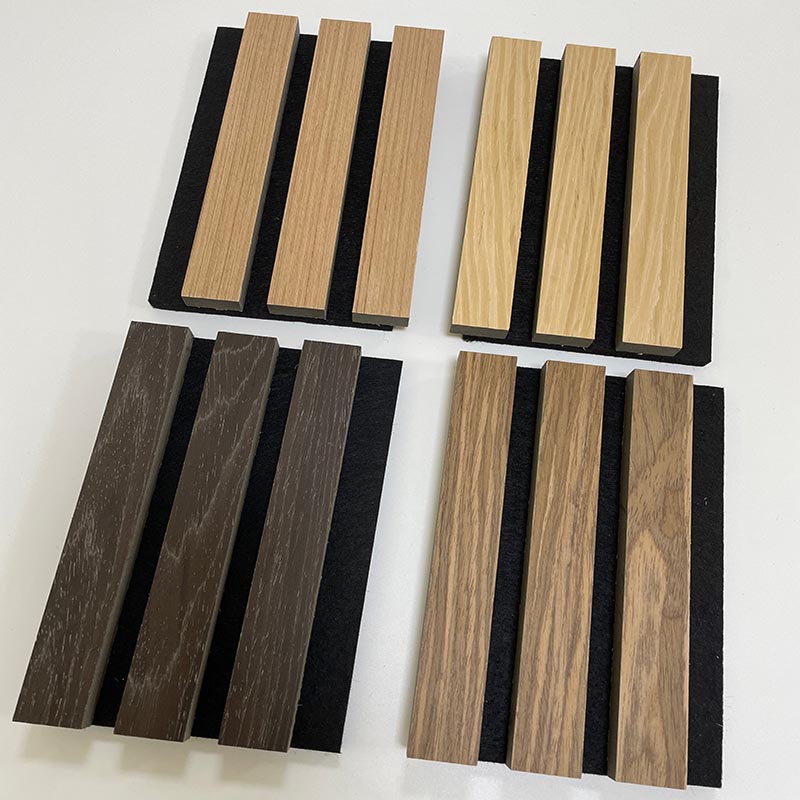

Recommended colors: (Veneer)



Project case:




FAQ



Q1: What is the delivery time?

Normally the production time is within 15-20 days, but it also depends on the order qty and orders scheduling situation.



Q2: If OEM & ODM available?

Yes, it is available to provide OEM or ODM service.



Q3: Do you provide free samples?

We provide free samples for normal products with small size, but customized products need sample charge.



Q4: What is your payment term?

30% deposit, balance paid before goods loading for normal products.

50% deposit, balance paid before goods loading for customized products.



Q5: What is the MOQ

100 M2 for acoustic materials, no limit for movable partition and office pod.



Q6: Will you supply installation keels and accessaries for installation?

Yes, we can supply installation keels and accessaries for installation together with the materials you ordered.



Q7: Do you provide installation guide?

Yes, we have skilled engineers with more than 20 years of construction experience, who can provide you installation guide.



Q8: Can you do the installation work in abroad?

Yes, we have professional teams that can do the installation work abroad. But normally only send one engineer to do the installation guide at site is more economic for the clients.
