Standard Size 2440mm*133mm ,2440mm*197mm
Thickness 12mm, 15mm, 18mm
Series Wooden series
Material MDF /MGO board / Solid wood
Color Wooden colors
Brand Soundwin
Code EN13501-1, ASTM-E84
Model SW-GW001
Finish Melamine /High pressure laminate /Veneer /Paint
Fire rating National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
Inquiry
Parameters
Standard Size
2440mm*133mm ,2440mm*197mm
Thickness
12mm, 15mm, 18mm
Series
Wooden series
Material
MDF /MGO board / Solid wood
Color
Wooden colors
Brand
Soundwin
Code
EN13501-1, ASTM-E84
Model
SW-GW001
Finish
Melamine /High pressure laminate /Veneer /Paint
Fire rating
National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
I know
Detail

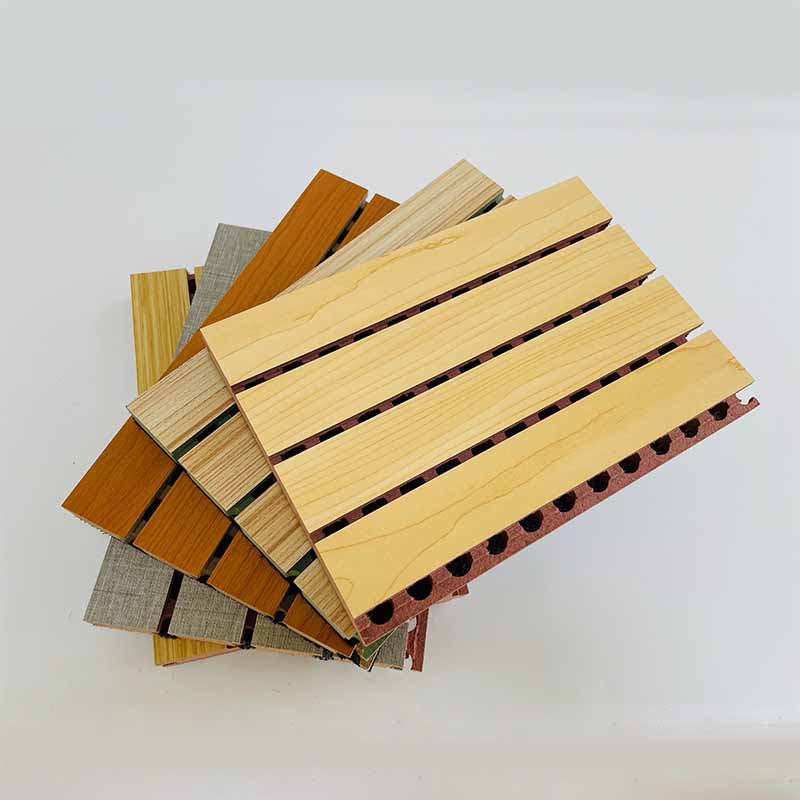

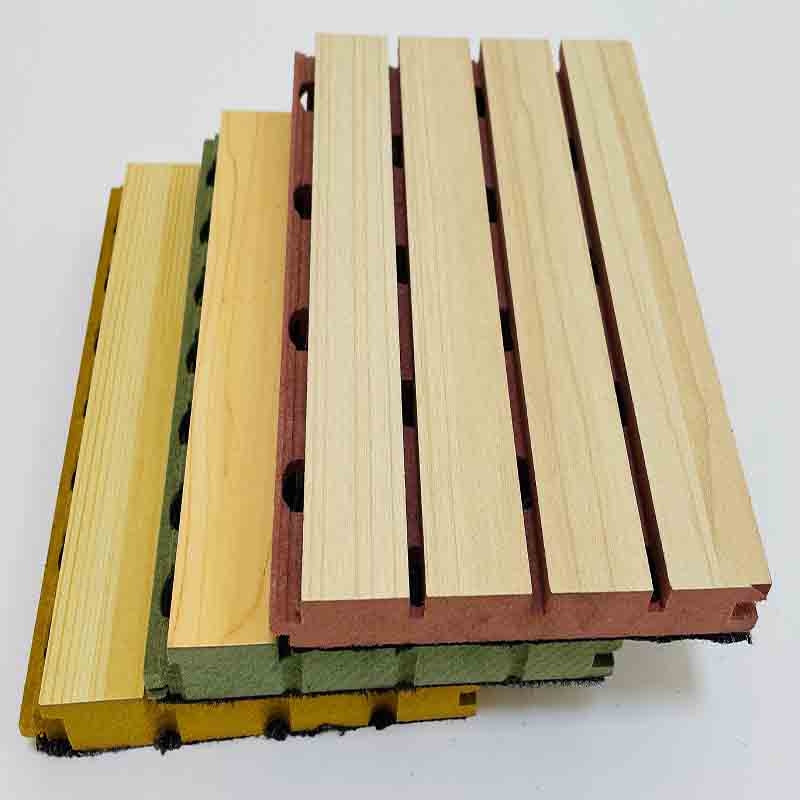

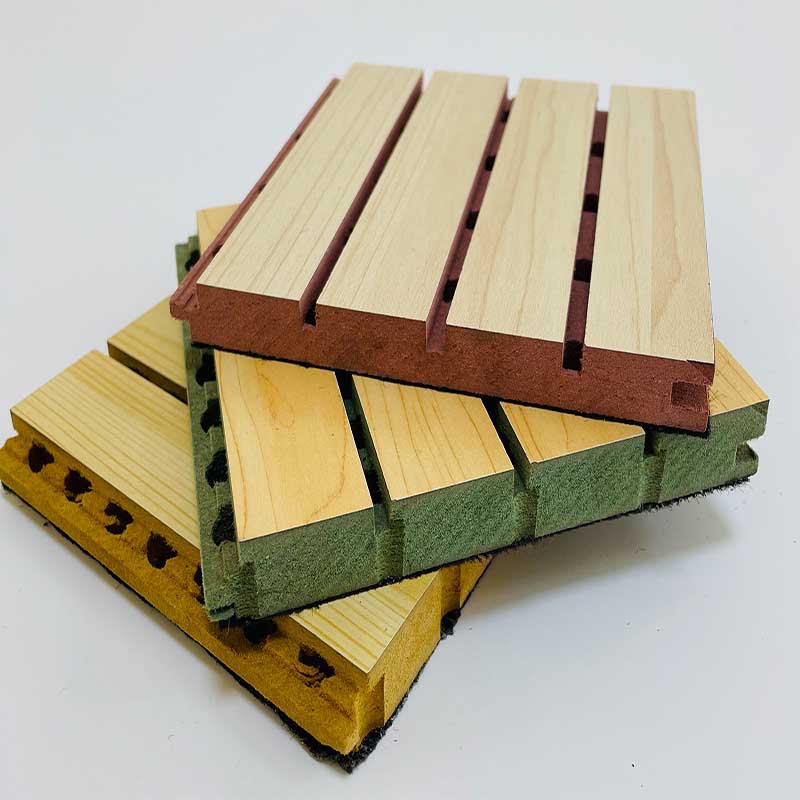

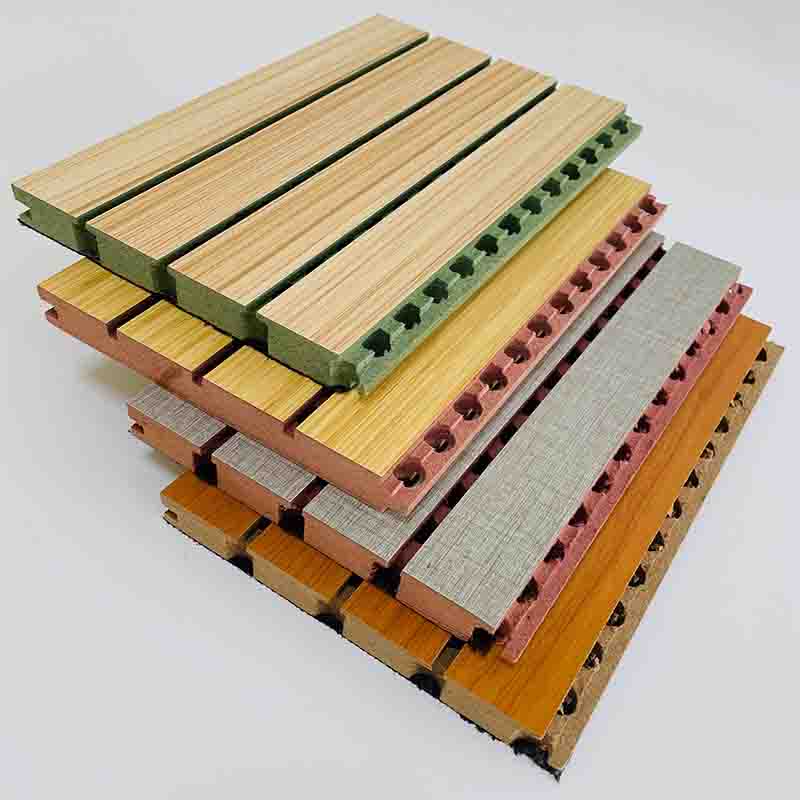

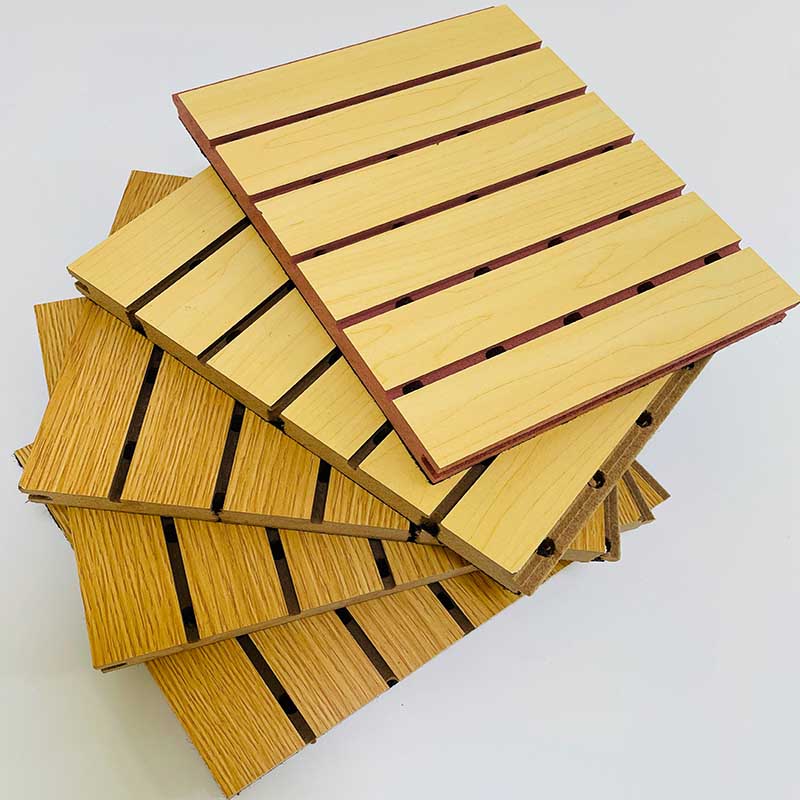

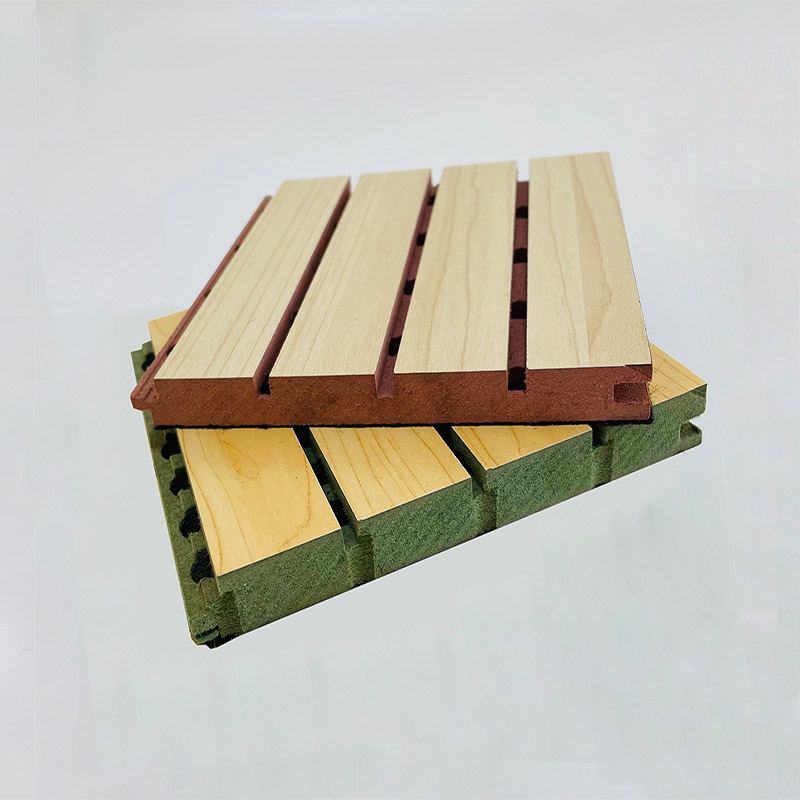

SW GROOVED ACOUSTIC PANEL is a commonly used building acoustic sound absorbing material. It is a structure with slots on the front and holes on the back. It forms a resonance sound-absorbing structure with the eco friendly acoustic foam filled at the back and the back cavity formed toward the wall or the ceiling.

It has excellent sound absorption effect for low and medium and high frequencies, and is widely used in auditoriums, conference rooms, multi-function halls, gymnasiums, offices and other places.


NORMAL GROOVED ACOUSTIC PANEL SYSTEMS


Specification:

Standard Size: 2440mm*133mm ,2440mm*197mm

Thickness: 12mm, 15mm, 18mm


Finish:

*Melamine

*High pressure laminate

*Veneer

*Paint


Main material:

* MDF

* MGO board

* Solid wood


Acoustic performane:

Frequency (HZ)
125250500100020004000NRCTesting condition

Sound absorption

coefficient (α)

0.30 0.60 0.85 0.76 0.65 0.72 0.72 13-3
50mm Back cavitity
50mm Acoustic foam

Sound absorption

coefficient (α)

0.32 0.73 0.82 0.53 0.39 0.40 0.62 28-4
50mm Back cavitity
50mm Acoustic foam


Fire rating:

* National standard: Grade B1

*Class A per ASTM-E84

*B-s1 d0 per EN13501-1:2018


Scene display:


Wooden Color Chart




FAQ



Q1: What is the delivery time?

Normally the production time is within 15-20 days, but it also depends on the order qty and orders scheduling situation.



Q2: If OEM & ODM available?

Yes, it is available to provide OEM or ODM service.



Q3: Do you provide free samples?

We provide free samples for normal products with small size, but customized products need sample charge.



Q4: What is your payment term?

30% deposit, balance paid before goods loading for normal products.

50% deposit, balance paid before goods loading for customized products.



Q5: What is the MOQ

100 M2 for acoustic materials, no limit for movable partition and office pod.



Q6: Will you supply installation keels and accessaries for installation?

Yes, we can supply installation keels and accessaries for installation together with the materials you ordered.



Q7: Do you provide installation guide?

Yes, we have skilled engineers with more than 20 years of construction experience, who can provide you installation guide.



Q8: Can you do the installation work in abroad?

Yes, we have professional teams that can do the installation work abroad. But normally only send one engineer to do the installation guide at site is more economic for the clients.
