• 1/5
Standard Size 1200mm*600mm
Thickness 10mm, 25mm,50mm or customized
Density 7-12kg/m3
Series Soft series
Material Melamine
Color White/Grey/Other customized colors with MOQ requirement
Brand Soundwin
Code EN13501-1, ASTM-E84
Model SW-ML001
Finish Bare
Fire rating National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
Parameters
Standard Size
1200mm*600mm
Thickness
10mm, 25mm,50mm or customized
Density
7-12kg/m3
Series
Soft series
Material
Melamine
Color
White/Grey/Other customized colors with MOQ requirement
Brand
Soundwin
Code
EN13501-1, ASTM-E84
Model
SW-ML001
Finish
Bare
Fire rating
National standard: Grade B1 /Class A per ASTM-E84 /B-s1 d0 per EN13501-1:2018
I know
Detail

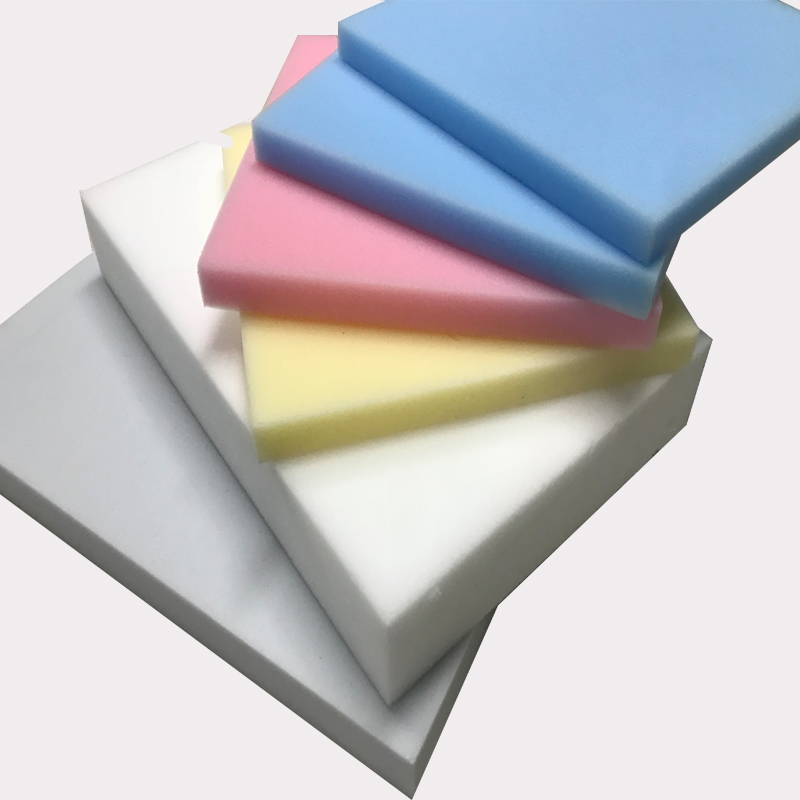

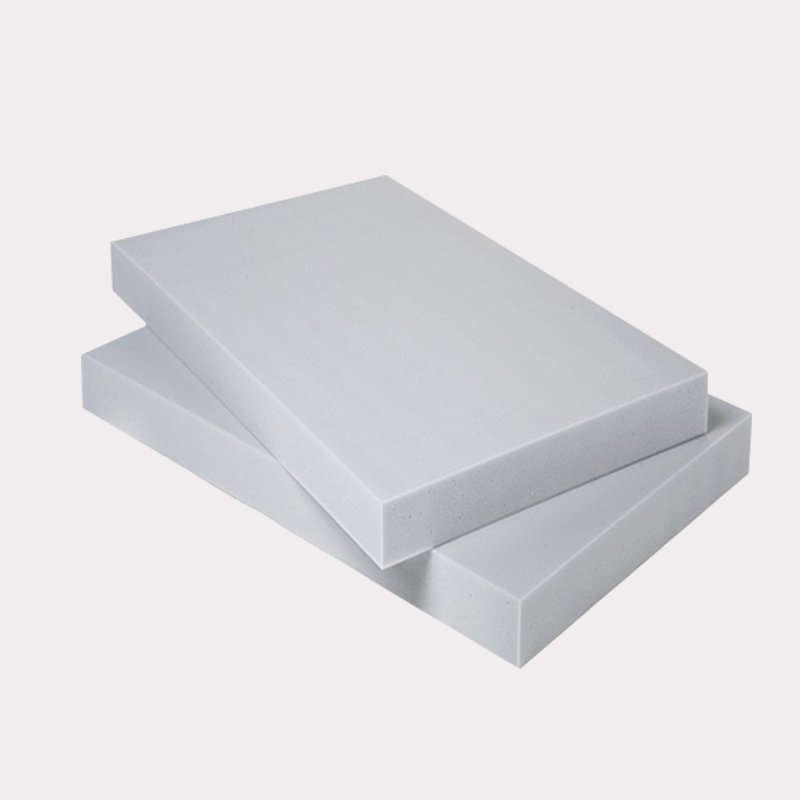

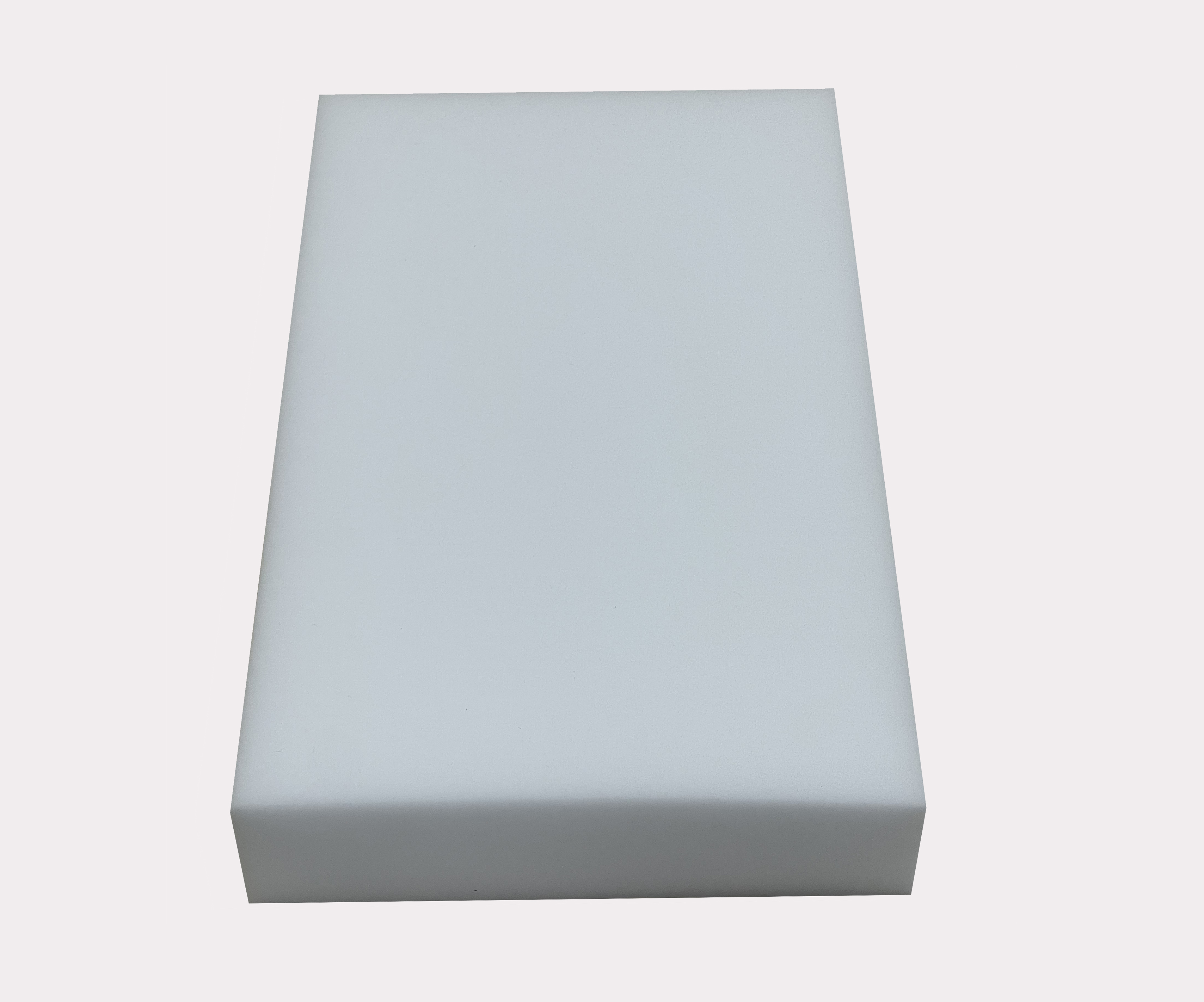

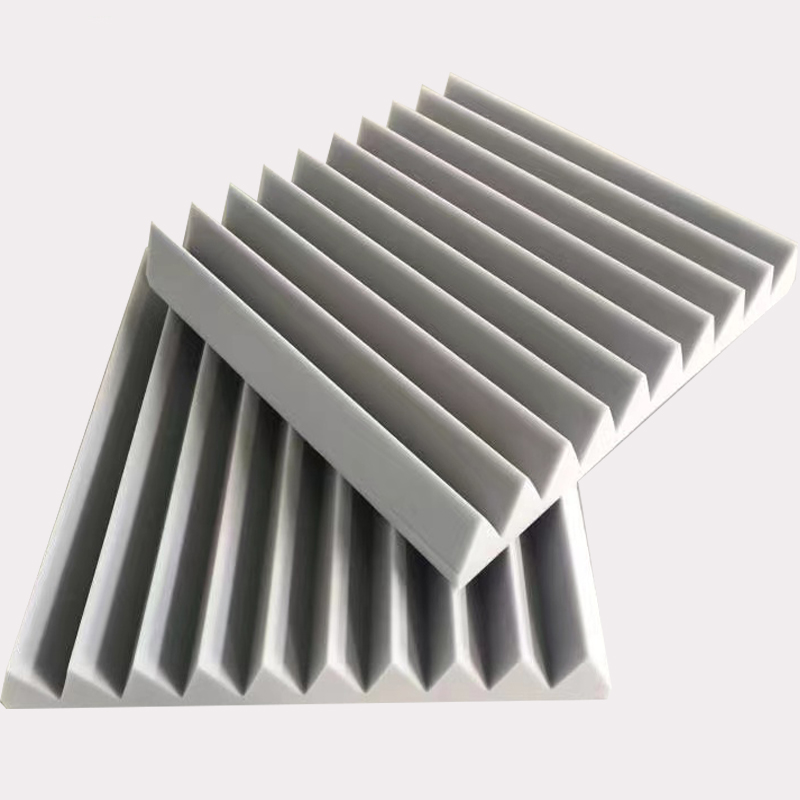

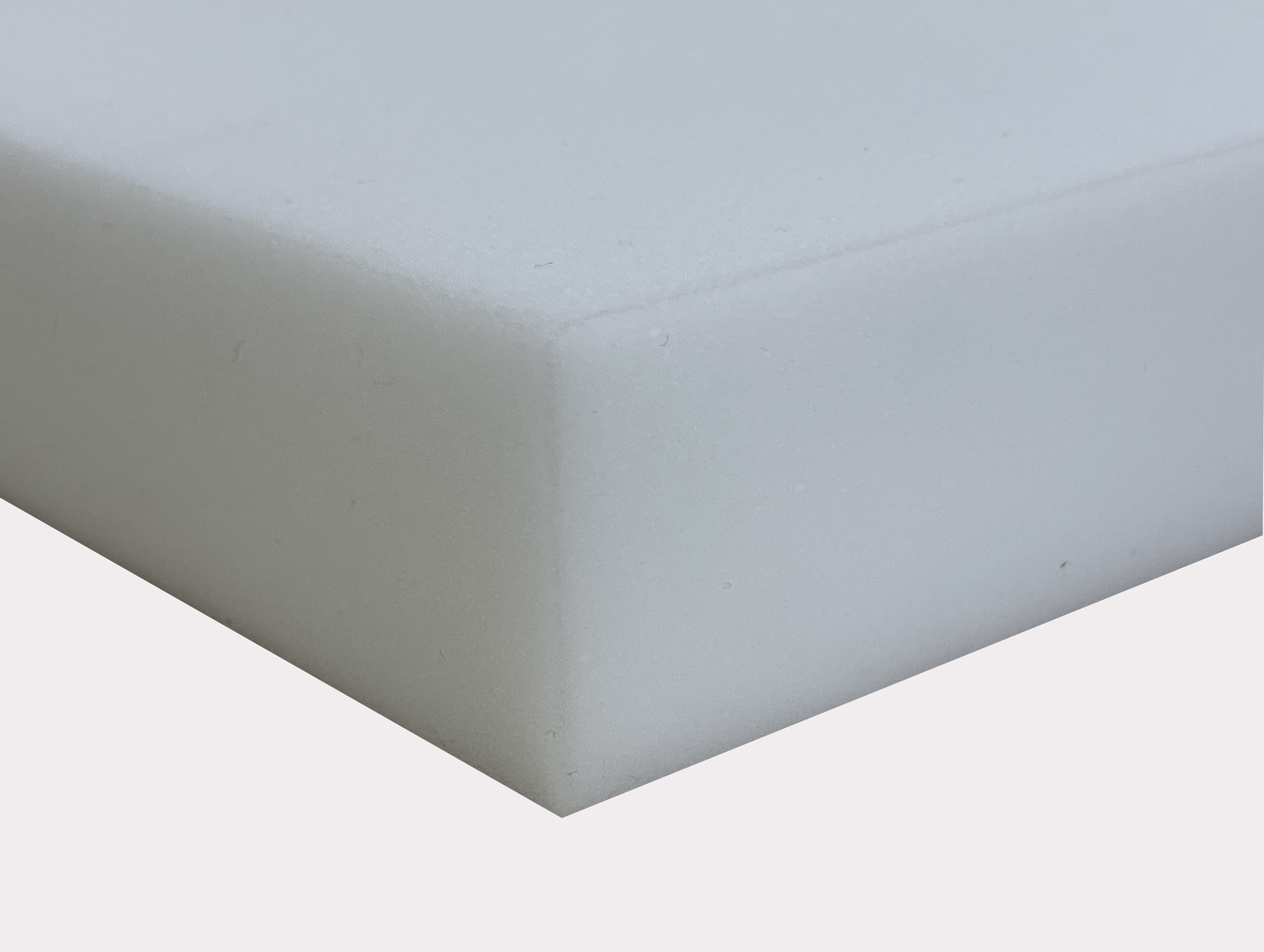

SW MELAMINE FOAM is an eco friendly, lightweight, high and low temperature resistant, non-toxic foam made from melamine resin.   It has excellent thermal properties and superior sound absorption performance, so widely used as acoustic materials in auditorium, studio, meeting room, stadium, etc.


Specification

Standard Size: 1200mm*600mm

Thickness: 10mm, 25mm,50mm or customized


Finish:

* bare

Color:

* White

* Grey

* Other customized colors with MOQ requirement


Physical Properties:

Density: 7-12kg/m3

Thermal Insulation: thermal conductivity in 0.0315W / (m.K)

Tensile Strength: 18 psi per ASTM D3574-86 test E

High and low temerature resistance: can work under   240 ℃ conditions, only decomposed above 400 ℃,   maintain excellent performance at -200 ℃

Stability: stroage stably with chemical and physical stability under normal pressure and temperature


Fire rating:

* National standard: Grade B1

*Class A per ASTM-E84

*B-s1 d0 per EN13501-1:2018


Acoustic performane:

Frequency   HZ)
125250500100020004000NRCTesting condition

Sound absorption

coefficient α

0.230.450.880.860.840.700.7650mm melamine foam
    100mm Back cavitity
