Standard Size 600mm*600mm, 600mm*1200mm, 600mm*1800mm,600mm*2400mm
Thickness 12mm, 15mm, 18mm
Series Wooden series
Material MDF /MGO board / Solid wood
Color Pure color or wood grain
Brand Soundwin
Model SW-MC001
Finish Melamine /High pressure laminate /Veneer /Fabric
Fire rating *National standard: Grade B1 *Class A per ASTM-E84 *B-s1 d0 per EN13501-1:2018

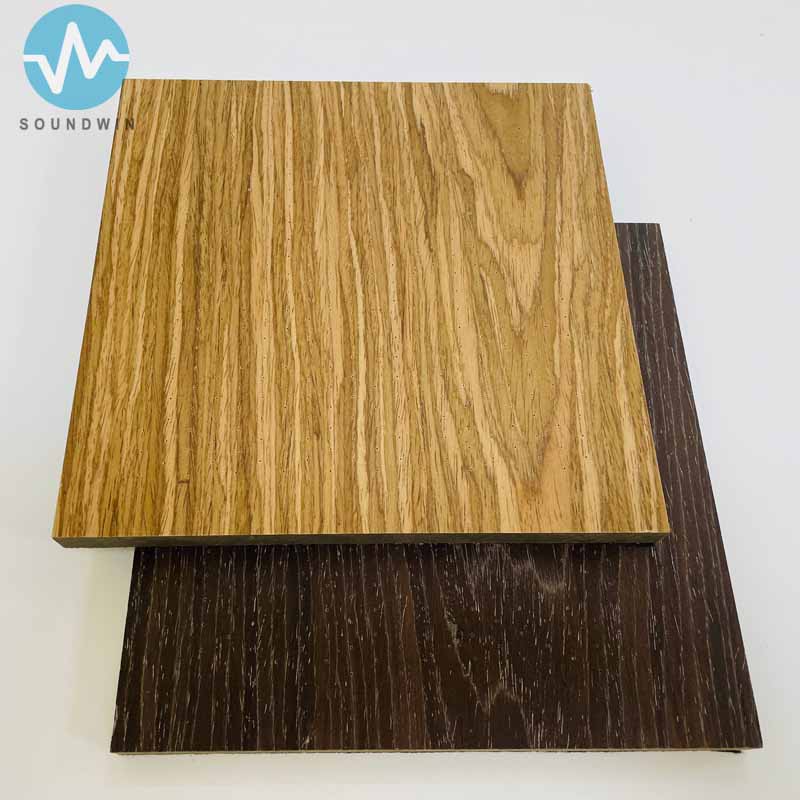

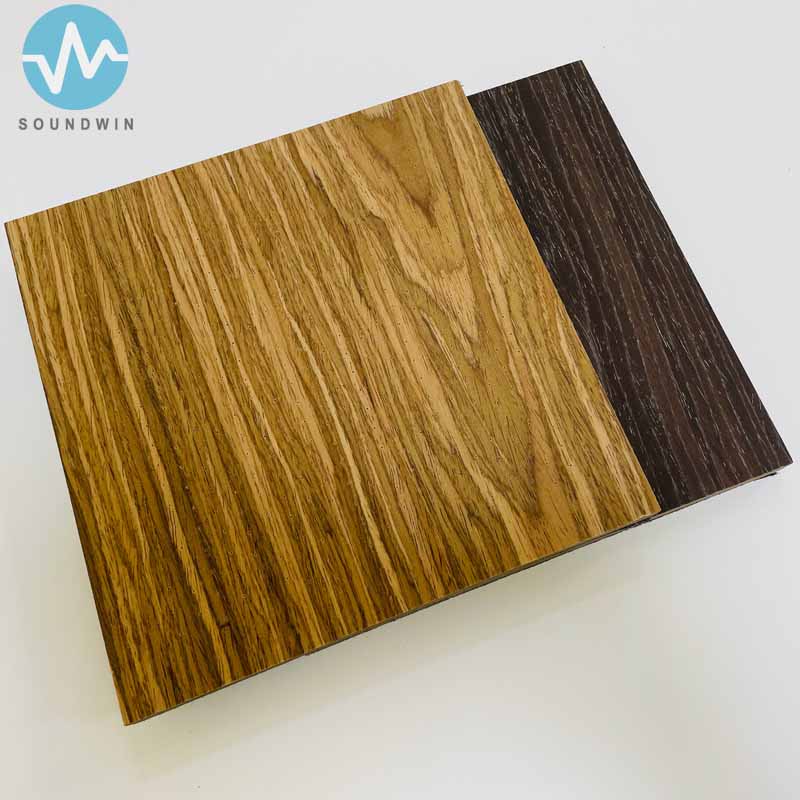

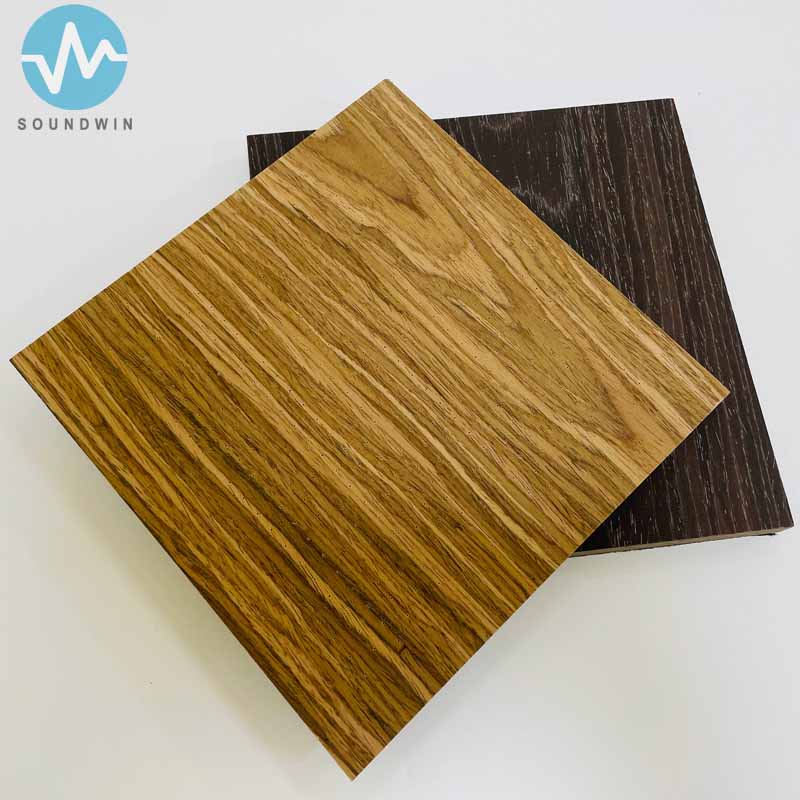

SW MICRO PERFORATED ACOUSTIC PANEL is made of eco friendly MDF panel or MGO board with micro perforation on the surface. Defferent diameter of holes and different distance of holes is designed to adjust the perforation rate, which to adjust the acoustic effect to different sound frequency.

It features good sound absorbing effect to low frequency, grade A or B fireproof, moistureproof, impact resistant, elegant decorative, long using life,etc.   It is popular used in auditorium, meeting room, banquet hall, grant theater or other places that need to reduce echoes and enhance sound effect,etc.


Standard Size:

600*600mm, 1200mm*600mm,   2400mm*600mm

Thickness: 12mm,15mm, 18mm or customized






* Melamine

* High pressure laminate (HPL)

* Veneer

* Painted

Fire rating:

* National standard: Grade A or B1

* Class A per ASTM-E84

* B-s1 d0 per EN13501-1:2018


* Diameter of holes: 0.4mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm

* Central distance of holes:   4mm, 5mm, 8mm



*   E1 environment protection

*   Grade A or B1 firproof (National Standard)

*   Good sound absorption to low frequency

*   impact resistance

*   mildew proof

*   weather proof

*   long using life

Acoustic performane:

Frequency (HZ)125
250500100020004000NRCTesting condition
Sound absorption coefficient (α)0.500.770.510.37

E5-1 micro perforated panel

50mm Acoustic foam

200mm Back cavitity

Scene display:


Q1: What is the delivery time?

Normally the production time is within 15-20 days, but it also depends on the order qty and orders scheduling situation.

Q2: If OEM & ODM available?

Yes, it is available to provide OEM or ODM service.

Q3: Do you provide free samples?

We provide free samples for normal products with small size, but customized products need sample charge.

Q4: What is your payment term?

30% deposit, balance paid before goods loading for normal products.

50% deposit, balance paid before goods loading for customized products.

Q5: What is the MOQ

100 M2 for acoustic materials, no limit for movable partition and office pod.

Q6: Will you supply installation keels and accessaries for installation?

Yes, we can supply installation keels and accessaries for installation together with the materials you ordered.

Q7: Do you provide installation guide?

Yes, we have skilled engineers with more than 20 years of construction experience, who can provide you installation guide.

Q8: Can you do the installation work in abroad?

Yes, we have professional teams that can do the installation work abroad. But normally only send one engineer to do the installation guide at site is more economic for the clients.
