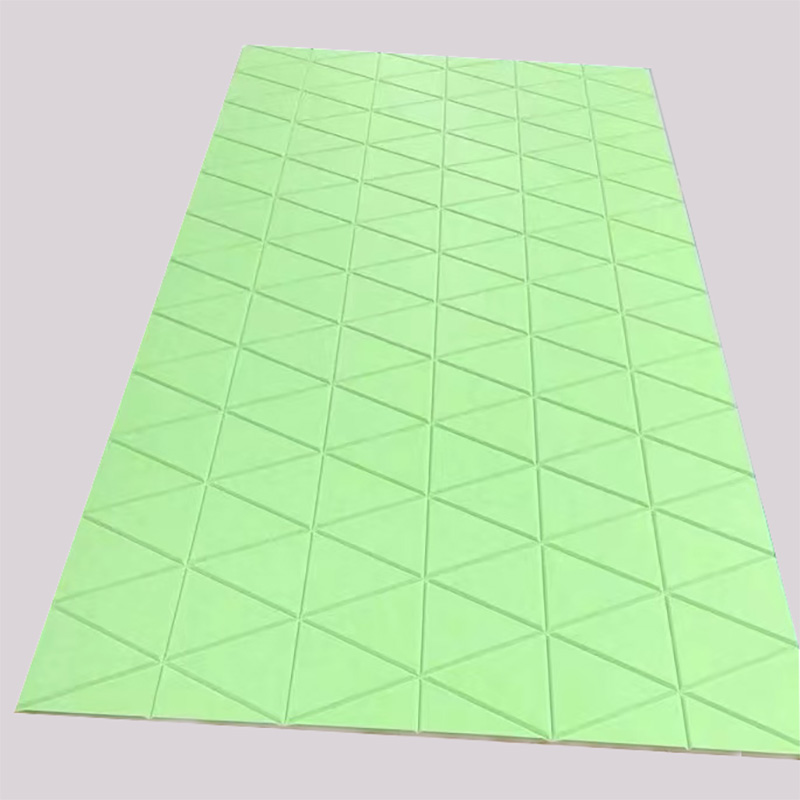

SW Carved Polyester fiber Acoustic Panel

Standard Size 600mm*1200mm, 600mm*2400mm
Thickness 9mm, 12mm, 18mm, 21mm, 24mm
Series Soft series
Material Polyester fiber
Brand Soundwin
Code EN13501-1, ASTM-E84
Model SW-CA003

SW PRINTED ACOUSTIC PANEL is made of eco friendly polyester fiber panel with printed pictures, different HD pictures are available to be chosen, the customers also can provide HD pictures. it is popular used for many different venues such as music classroom, kindergarten, studio, cinema, home theater, meeting room, break room, office, etc.


Standard Size: 1200*600mm, 600*600mm, 2400mm*1200mm

Max Size: 3000mm* 1220mm

Thickness: 9mm, 12mm, 18mm, 21mm, 24mm

Customized size and thickness available


* Printed Polyester fiber finish


*   as pictures

Fire rating:

* National standard: Grade B1

*Class A per ASTM-E84

*B-s1 d0 per EN13501-1:2018

Acoustic performance:

Frequency (HZ)
125250500100020004000NRCTesting condition
Sound absorption
coefficient (α)
0.130.570.810.920.680.680.759mm panel, 100mm cavitity
